Comparison
SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech’s engineering and optical design teams are ready to help.

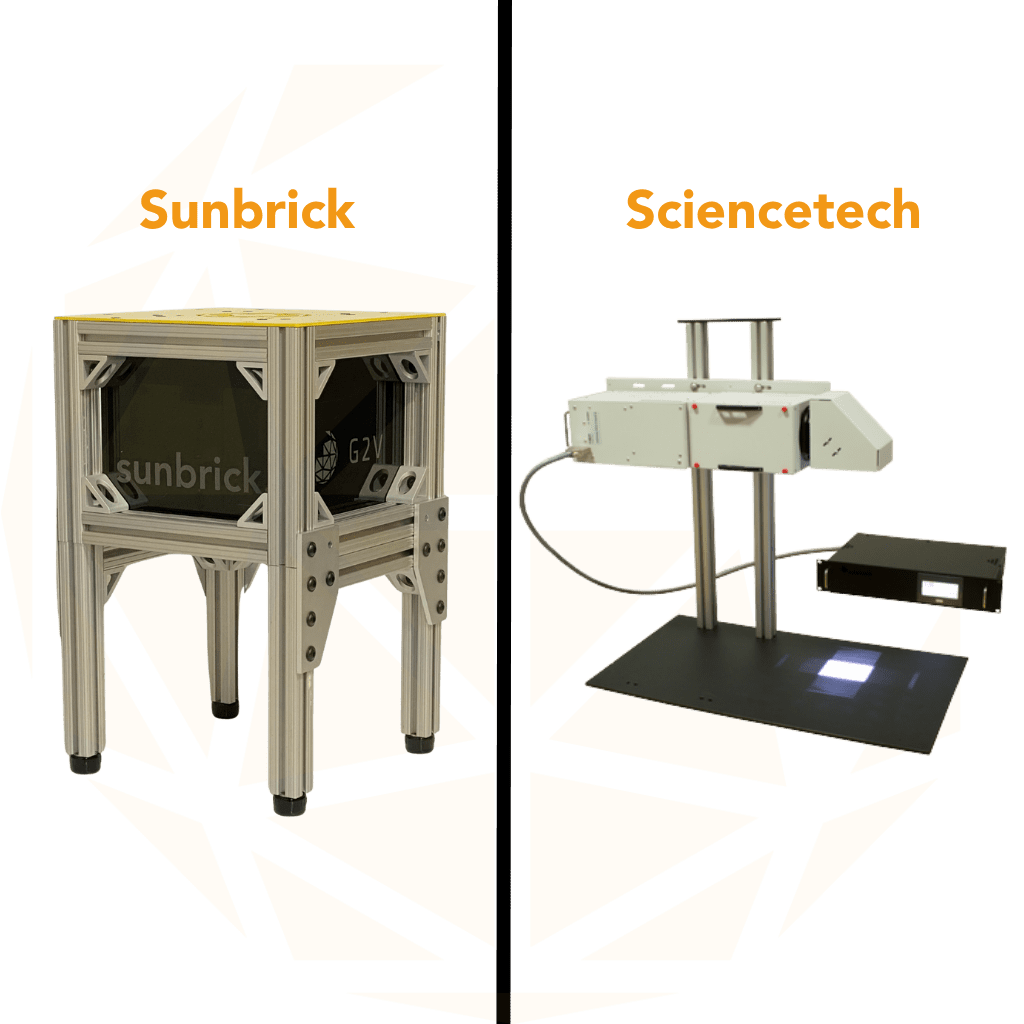

| Feature | G2V Sunbrick LED Solar Simulator | SciSun Solar Simulator, AM1.5G, Class AAA, 50 × 50 mm Xenon Solar Simulator | Questions To Ask Yourself |
|---|---|---|---|
| Area of Illumination - Class A | 150 mm x 150mm up to modular 3x2 array sizes | Will my Device Under Test (DUT) increase in size as my research progresses? | |
| Area of Illumination - Class A+ | 100 mm x 100mm up to modular array sizes | TODO build field | TODO build field |
| Spectral Range | 350 nm – 1200 nm | ||
| Spectral Control | Yes - 32 channels full spectrum control | Will I need to simulate AM1.5G, AM0, or custom conditions? | |
| IEC 60904-9 Compliance | Class A+A+A+ | Do I need certified, high-accuracy performance across all IEC categories? What problems will I have with lower Class uniformity performance? | |
| Spectral Coverage | <98% | ||
| Spectral Deviation | <27% | How closely does the spectrum need to match real sunlight for my application? | |
| Spectral Match | < ±9% | How much spectral mismatch can my application tolerate before it affects measurement accuracy or material performance? | |
| Long-Term Temporal Stability | <1% | How sensitive are my experiments to light stability over time? | |
| Spatial Uniformity | <0.8% | Do I need consistent irradiance over the full sample surface? Could spatial variation compromise my data? | |
| Lifetime | 25,000+ hours | How much downtime or recurring cost can I afford? What are the cost of bulb replacements? How many bulbs per year will I need? | |
| Software & API | Yes - Modern GUI and Python API included | Will I need automation, scripting, or lab instrument integration? Will I need to run scripts across multiple instruments? | |
| Maintenance | No consumables; No alignment needed; | How much downtime or recurring cost can I afford? What are the cost of bulb replacements? How many bulbs per year will I need? | |
| System Footprint | 33cm x 33 cm x 50 cm. Both base and illumination head are 25 cm tall | TODO build field | TODO build field - Does my setup require space efficiency? |
| Price Point | <$100/cm² | Does the price reflect full system capability and long-term value? Will I need to upgrade or maintain later? |
SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech’s engineering and optical design teams are ready to help.
Class A+ Light for Research That Demands Accuracy
Precise, repeatable, full-spectrum light: whatever your application.
Every comparison starts with specs, but the best instruments prove themselves in the data. G2V’s Sunbrick is Class A+A+A+ rated to IEC60904-9:2020, covering 350 nm – 1200 nm across 32 tunable LED channels, with spatial non-uniformity ≤ 0.8% and short-term instability under 0.025%. See how it stacks up.
The most accurate solar spectrum available in an LED simulator.
The Sunbrick AM1.5G spectral output covers 350-1200 nm across 32 tunable LED channels, exceeding IEC60904-9:2020 Class A+ requirements and the ASTM E927 standard.
Consistent, repeatable light across every millimetre of your sample.
Spatial non-uniformity of ≤1% across a 10×10 cm Class A+ illumination area – with Class A uniformity extending to 15×15 cm for larger samples.
From power-on to publication-ready data in seconds.
Short-term temporal instability under 0.25% from a 2-second cold start, with long-term instability below 1% over a rated 25,000-hour lifetime.
Top-tier labs in aerospace, photovoltaics, and materials science are turning to the G2V Sunbrick because they need more than just light; they need control – bulky Xenon systems with drifting spectra and manual control don’t cut it.
Whether you’re:
Validating next-gen solar cell performance
Simulating real-world solar conditions across custom spectra
Or automating precise, long-duration optical tests
The Sunbrick delivers Engineered Sunlight™ without the optical benches, bulb changes, or setup headaches. Just stable, repeatable, programmable light. Wherever and whenever you need it.
Finding a consistent format of information comparing solar simulators and other alternatives isn’t easy. Our articles are designed to consolidate the information and keep you from needing to explore endless pages of search results
